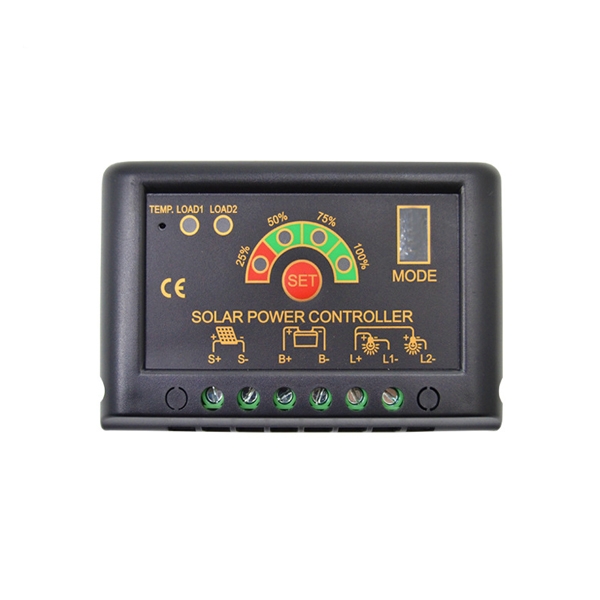

15A PWM Solar Charge Controller, 12V/24V

15A PWM solar charge controller supports both 12V and 24V systems with automatic voltage recognition and utilizes advanced PWM technology for multi-stage charging, including bulk, absorption, and float stages. The 15A solar system charge controller is perfect for residential solar power systems, street lighting, remote monitoring stations, RV and marine solar systems, and various small-scale solar projects. features of the controller include intuitive LED indicators for real-time status updates, a digital tube display for system parameters and error codes, and a SET button for easy configuration of time control, battery type, mode setting, and factory reset.

Feature

• Solar Charge Controller: 12V/24V automatic identification, with automatic detection of battery voltage function, compatible with lead-acid batteries, lithium ternary, lithium iron phosphate and other battery types, PWM mode charging.
• Household type and street lamp type in one, with power-down protection, over-charging, over-discharging, over-current, short-circuit, reverse connection and other protective measures.

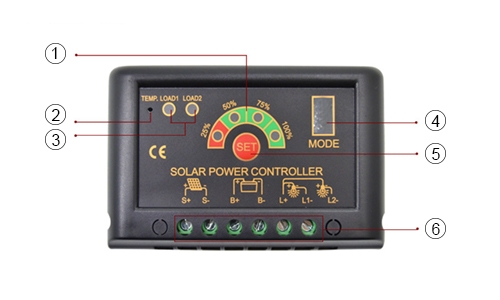

Details

1. Battery charging status: Efficiently manages battery charging with multi-stage PWM technology.
2. Temperature sensor: Automatically adjusts charging parameters based on ambient temperature.
3. LED indicator: LEDs provide real-time status of load and battery conditions.
4. Digital tube display: Displays system parameters, battery type, and error codes for troubleshooting.
5. SET button: Allows configuration of time control, battery type, mode setting, and factory reset.

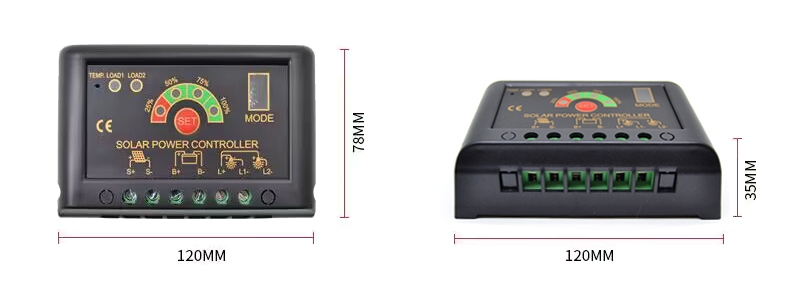

PWM Solar Charge Controller Size

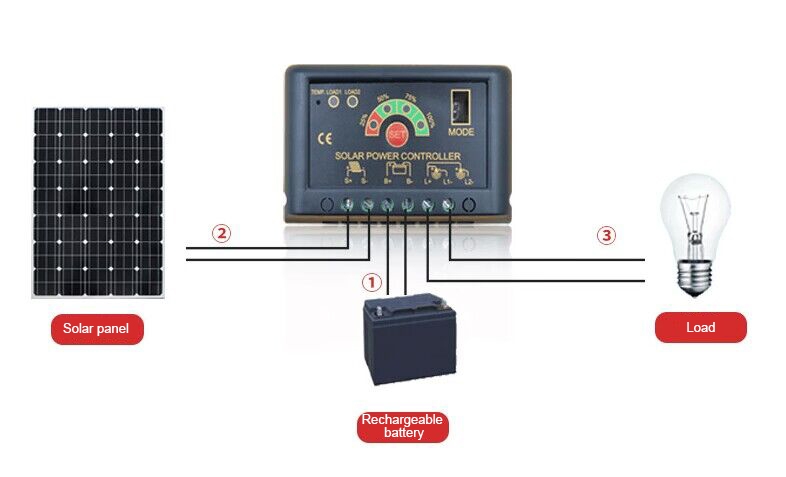

PWM Solar Charge Controller Wiring Method

Note: All wiring to ensure disconnection of power
