How to Read an Inverter's Digital Display

Whether you're checking to see if your solar panels are working properly or monitoring the efficiency of your home's electricity usage, it's important to know how to read your solar panel's inverter. The inverter is the core component of your solar system, converting the direct current (DC) generated by your solar panels into alternating current (AC) that your home can use. Therefore, properly understanding the information on the inverter's display is critical to ensuring that your solar system is running efficiently.

Reading the Inverter

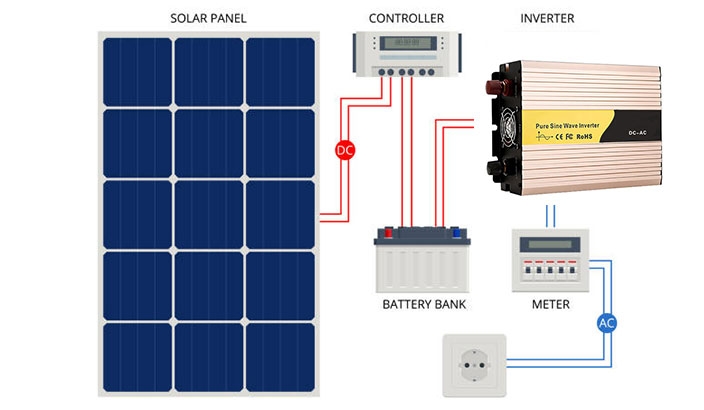

The solar panels recommended by POWERHOME use a power inverter for home. The inverter is like the brain or chain of command of your solar system. It converts the DC voltage generated by the solar panels into AC power for home use. The inverter is usually mounted on the side of the house where the other metering equipment is located and has a digital panel that allows you to check the amount of power generated.

The Inverter's Digital Display

The pure sine wave inverter's digital display will usually show the following:

1. Vac [V]: This number represents the AC voltage on the main wires. Typically, this number will be around 240, which is the standard service voltage for homes. The inverter matches this voltage when it converts DC to AC to send excess power back to the grid. For example, the display may show 246.8V, which indicates that the current AC voltage on the main power line is 246.8 volts.
2. Vdc [V]: This is the DC voltage produced by the panels. If you compare electricity to water flowing through a pipe, the voltage is like the water pressure inside the pipe. The rate at which the electricity flows through the pipe depends on the number of watts produced by the panels. This reading from the inverter shows the voltage output from the panels. For example, the display may show 392.3V, indicating that the panels are producing 392.3 volts DC.
3. Pac [Watt]: Pac stands for "Power AC", which is the amount of power produced by the panels in watts. This reading is one of the most important indicators for monitoring the performance of your solar system. For example, the display may show 5611.4W, which means that the current output of the panels is 5611.4 watts, indicating that it's a nice sunny day because the 22 295-watt panels are producing a very high wattage.
4. ON: This is the simplest indicator. If the display shows "On", it means the inverter is turned on and working normally. If it is not turned on, it will show "off".

Remote Monitoring

To keep track of your solar system's performance, you don't need to go outside to look at your inverter very often. The information is captured by a GSM antenna that transmits the system data to cell phone towers so it can be tracked via an app or internet connection. This way, you can see how your system is performing anytime, anywhere.

Frequently Asked Questions

• Q1: How can I check the working status of the inverter?
• A1: Through the digital display of the inverter, you can view the current Vac, Vdc, Pac, P_OK, and other readings to understand the working status of the system.
• Q2: Why does my inverter display "Off"?
  A2: The inverter displaying "Off" may be due to a power connection problem or a fault in the inverter itself. Please check the power connection or contact technical support.
• Q3: How can I monitor my solar system remotely?
• A3: Using a GSM antenna to transmit system data to cell phone towers, you can view system performance data remotely via an app or internet connection.
• Q4: My P_OK reading shows less than the total number of panels, what should I do?
• A4: If the P_OK shows a value less than the total number of battery boards, there are battery boards that are not connected properly. Please check the connection of the panels or contact technical support.

Solar System Installation and Maintenance

Installing an efficient solar system requires specialized skills and experience. Here are a few key steps to keep in mind during the installation process:

1. Site Assessment: Before installation, a team of professionals will conduct a comprehensive assessment of the installation site, including the roof's carrying capacity, sunlight conditions, and grid connection conditions. This information will be used to design an optimized solar system solution.
2. System Design: Based on the assessment results, the design team will develop a detailed system design plan, including the layout of the panels, the choice of inverter, wiring methods, etc. The system will be designed in a way that ensures that the system can be installed in different weather conditions. This ensures that the system can operate efficiently under different weather conditions.
3. Equipment Installation: The installation team will fix the solar panels, inverters, and other equipment in the designated locations and make the correct electrical connections according to the design scheme. All installation work must comply with local electrical safety standards and regulations.
4. System Commissioning: After the installation is completed, technicians will conduct comprehensive commissioning and testing of the system to ensure that all equipment is functioning properly and can achieve the expected power generation results.
5. Routine Maintenance: Although the maintenance needs of a solar system are low, regular inspections and cleaning are still necessary. Users can follow the maintenance manual provided by the manufacturer to regularly check the operating status of the system and clean the surface of the panels of dust and debris to ensure that the system is always operating in the best condition.

Learning more about how power inverters work and explaining readings can help you better explain the phenomenon of solar power to your neighbors. You'll also learn more about it yourself and improve your confidence in your solar system.

Understanding how to read an inverter's digital display is critical to monitoring and maintaining your solar system. By understanding the meaning of these basic readings and indicators, you can better ensure that your system is functioning properly and providing your home with a steady stream of power. PowerHome is committed to providing you with comprehensive off-grid energy solutions for your home, making it easy for you to enjoy the convenience of green energy. Whether you're looking to power your off grid life or need more technical support, we're here for you. Please feel free to request a free quote or contact us online and one of PowerHome's solar customer service representatives will be able to help you with your questions.
