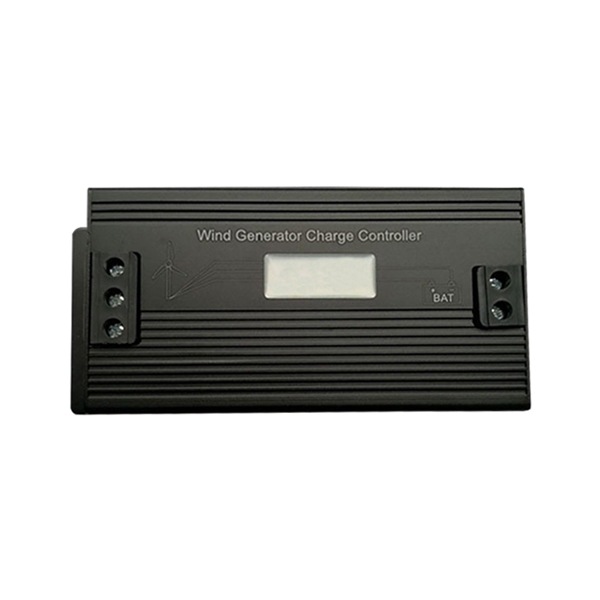

    600W Wind Turbine Controller, 12V/24V/48V

    0 review(s) | Add your review
    SKU: PH-WTC-600
    $124.45
    ● Versatile Compatibility: Innovative 600W wind turbine controller for 12V/24V/48V wind systems with optimized overcharge protection to 15V/29V/58V. ● Advanced Protection: Features anti-reverse, overcharge, lightning, current limit, and automatic/manual wind brake for enhanced safety. ● Customizable Temperature Compensation: Fine-tune voltage adjustments (-20 to 65°C) for efficient power management in diverse climates. ● Robust Construction: Crafted from durable aluminum profiles, ensuring longevity and reliability in challenging environments.
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    Wind Turbine Controller, 800W/1000W, 12V/24V/48V

    ● Suitable for 800W/1000W wind turbine, 12V/24V/48V automatic identification, support all kinds of home and portable mini wind power system. ● Equipped with three-phase soft brake technology and high wind brake protection, built-in improved three-stage charging algorithm and over-voltage protection to enhance battery life. ● Aluminum profile housing enhances heat dissipation and durability. Digital intelligent control system provides reliable wind energy conversion solutions for a wide range of application scenarios. ● Temperature compensation mechanism, wide operating temperature range (-20 to 55℃), ensuring stable operation in high altitude (≤5500M) and extreme environments.
    $141.99
    Picture of Horizontal Axis Wind Turbine, 600W/700W

    Horizontal Axis Wind Turbine, 600W/700W

    ● Strong wind resistance, low operating vibration, low start-up wind speed, high utilisation of wind energy ● Horizontal axis wind mill optional 600W, 700W, 12V, 24V, 48V ● Nylon fibre blade material, rare earth permanent magnet generator ● Ideal for home, marine, camping, offshore, onshore power supply
    $697.77

    600W Vertical Axis Wind Turbine, 24V/48V

    ● 600W vertical axis wind turbine, support 24V/48V voltage output. ● Classic three-blade design, space-saving, simple and beautiful. ● Low noise and high efficiency, suitable for urban use. ● Can be used for landscape project, street light, solar hybrid power generation.
    $2,315.55

    300W Wind Turbine Controller, 12V/24V

    ● 300 watt wind turbine controller for 12V/24V wind turbine for sale. MPPT technology design, breeze start fan. ● Low-voltage charging function, a flexible boost circuit design and modular structure for enhanced reliability. ● Supports 100W-400W turbines with intelligent 12/24V adaptive identification. ● Intelligent protection function. Suitable for off-grid home power systems, remote and rural area power supply.
    $64.28

    Horizontal Axis Wind Turbine, 100W/200W/300W

    ● Small wind turbine optional 100W, 200W, 300W, 12V, 24V, off grid living preference. ● Strong wind resistance, low operating vibration, low start-up wind speed, high utilisation of wind energy. ● Mini wind turbine diameter 1.1m, nylon fibre blade material, rare earth permanent magnet generator. ● Ideal for home, marine, camping, offshore, onshore power supply.
    $289.89
    Picture of Horizontal Axis Wind Turbine, 300W/400W/500W

    Horizontal Axis Wind Turbine, 300W/400W/500W

    ● High-performance horizontal axis wind turbine for home, offering a wide range of power options of 300W, 400W and 500W to provide reliable power. ● The HAWT is capable of rapidly converting wind energy into electricity for multi-scenario applications with 12V/24V rated voltage options. ● NdFeB magnetic steel material ensures stable operation under various wind conditions, providing reliable power output. ● Portable wind turbine design is simple and easy to install and maintain, providing a convenient use experience. Use for off grid living.
    $435.87
    Overview

    The new 600 watt wind turbine charge controller, which can be adapted to 12V, 24V and 48V (optional) , is one of the best choices for wind energy charge control. It is equipped with 15V/29V/58V overcharge protection, and can be temperature compensated from -20°C to 65°C with 8mV/°C/2V to ensure stable operation under various environmental conditions. Aluminum profile housing design with complete protection functions, including anti-reverse connection, overcharge protection, lightning protection, current limiting protection, and so on. Suitable for various places below 5500M altitude, easy to operate, stable and reliable, it is an indispensable tool for your wind power generation system. Welcome to buy our wind turbine controllers to help your clean energy journey!

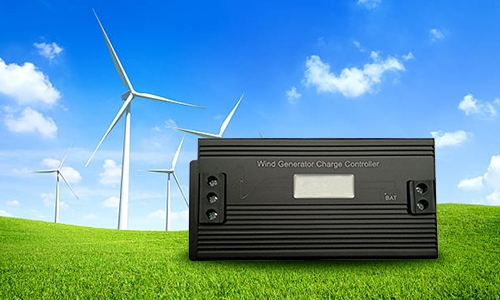

    600W wind turbine controller feature

    Feature

    • With multi-level protection function, digitalizable design, module non-contact structure, stable performance of wind turbine controller.
    • This wind turbine controller uses an improved three-stage charging algorithm, which can effectively prevent the phenomenon of uneven and sulfurization of the battery and improve the service life of the battery.
    • The controllers with three-phase soft brake technology are small and easy to install, and the aluminum profile housing makes good use of the heat dissipation of the housing.


    Details

    1. Improved Three-stage Charging Algorithm: Intelligent regulation of battery charging and discharging, improve charging efficiency and extend battery life
    2. Aluminum Shell Material Shell: Durable and lightweight, optimize heat dissipation, improve the overall stability of the wind turbine controller
    3. Lightning Protection: Adopting professional lightning protection technology, effectively resisting damage from lightning strikes and guaranteeing the safety of the equipment
    4. Multi-level Protection Function: Overcurrent, overvoltage, overheating and other multiple protections to ensure the safe operation of the wind power system
    600w to 700w wind turbine controller detail

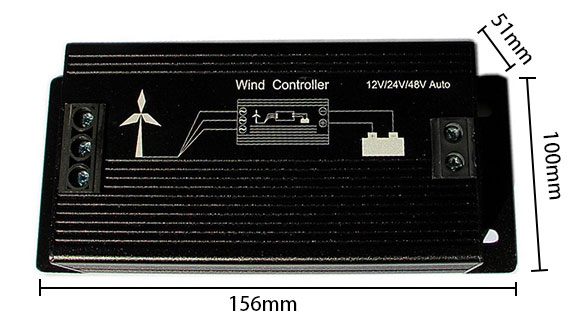

    600W Wind Turbine Controller Size (unit: mm)

    600W wind turbine controller size

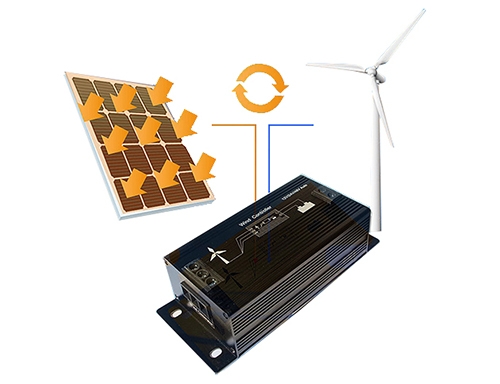

    Wind Turbine Controller Connection

    600W wind turbine controller connection

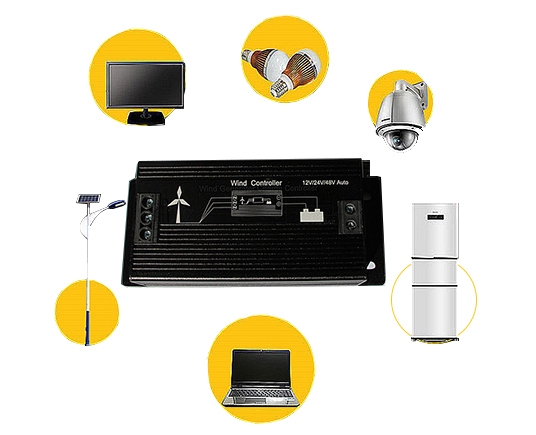

    600W Wind Turbine Controller Different Applications

    600W wind turbine controller different applications

    Specs
    Control System Rated Voltage 12V/24V/48V
    Rated Power of Wind Turbine 600W
    Battery Overcharge Protection 15V/29V/58V
    Temperature Compensation 8mV/°C/2V (Adjustable) -20～65°C
    Operating Ambient Temperature -20～55℃ 35～95%RH (no condensation)
    Storage Ambient Temperature -30～65℃
    Altitude ≤5500M
    Shell Material Aluminum profile
    Protection Function Anti-reverse connection, overcharge protection, lightning protection, current limiting protection, wind turbine automatic brake and manual brake
    Product Certification CE
    Color Black
    Size 180*76*46mm

    PDF computing12V/24V/48V Wind Turbine Controller User Manual

    Application
    Home rooftop power generation

    Home Rooftop Power Generation

    Remote communication base station

    Remote Communication Base Station

    Agricultural irrigation

    Agricultural Irrigation

    Road lighting

    Road Lighting

    FAQ

    Q1: Do 600W wind turbine controllers support data logging?

    Some advanced models of the 600 watt wind charge controllers offer a data logging feature that allows the user to track performance metrics such as power output, wind speed, and system efficiency over a period of time. This data is valuable for system optimization and troubleshooting.

    Q2: What factors should I consider when selecting a 600W wind turbine controller?

    Factors to consider include

    1. Maximum rated input/output power
    2. Compatibility with turbines and battery packs
    3. Protection features
    4. User interface and monitoring options

    Warranty and technical support from the manufacturer.
