Horizontal Axis Wind Turbine, 600W/700W

SKU: PH-HWT-M6
$697.77
● Strong wind resistance, low operating vibration, low start-up wind speed, high utilisation of wind energy ● Horizontal axis wind mill optional 600W, 700W, 12V, 24V, 48V ● Nylon fibre blade material, rare earth permanent magnet generator ● Ideal for home, marine, camping, offshore, onshore power supply
*
*
🚚 Free shipping
⏱️ Delivery: 6-12 days
🔙 30-day Returns
Overview

Residential wind turbines are designed to efficiently capture wind energy for sustainable power solutions. With a durable 3-blade configuration made of Nylon Fiber and a fan blade diameter ranging from 1.1m to 1.2m. Equipped with a rare earth permanent magnet generator using NdFeB magnetic steel, wind turbine offer reliable energy conversion, starting at a low 2.5m/s wind speed.

Horizontal wind turbine 100w 200w 300w feature

Feature

  • Off grid wind turbine, meet outdoor electricity needs
  • Wide range of applications for home, caravan, marine, offshore
  • Strong wind resistance, low operating vibration, low start-up wind speed, high utilisation of wind energy


Details

  1. Built-in copper inserts
    Built-in copper inserts in the blades will not damage the nylon fibres when the bolts are tightened, so that they will not be easily deformed or broken.
  2. Convenient flange design
    The user-friendly flange mounting design makes it easy to install and maintain.
  3. Hub and blade grooves are tightly fitted
    The hub grooves and blades are tightly fitted to provide a more precise fit between the blades and the hub.
  4. High temperature resistant Teflon copper wire
    The generator has low torque during start-up and high power conversion rate. Adopting high temperature resistant Teflon wire, it is not easy to burn the wire when the generator overloads and heats up.
Horizontal axis wind turbine 600w 700w details

Horizontal axis wind turbine 600w 700w decomposition

1 2 3 4 5
Wind Turbine Body Wind Turbine Flange Block Steel Pipe Support (Tower) Wind Turbine Shaft Wind Turbine Forge
6 7 8 9 10
Wind Turbine Blade Loose Nut Fairing Bolt Flat Washers
11 12 13 14 15
Elastic Washers Nuts Stainless Steel Screws Loose Nuts Rubber Washers
Specs
Rated Power and Maximum Power 600W (620W) ; 700W (730W)
Rated Voltage 12V/24V/48V
Starting Wind Speed 2.5m/s
Rated Wind Speed 11m/s
Safe Wind Speed ≤45m/s
Fan Blade Diameter 1.8m
Number of Blades 3
Blade Material Nylon Fiber
Generator Type Rare Earth Permanent Magnet Generator
Magnetic Steel Material NdFeB
Braking Method Electromagnetism
Wind Adjustment Automatic windward adjustment
Working Temperature -40~80℃
Application
Wind turbine for home

Home

Wind turbine for street lights

Street Lights

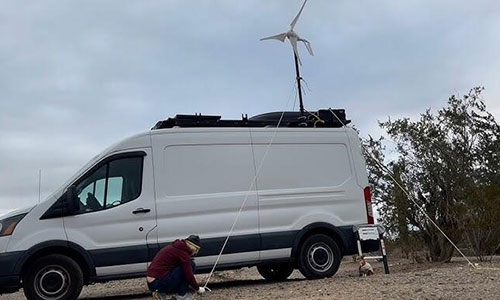

Wind turbine for caravan

Caravan

Wind turbine for camping

Camping

FAQ

Q1. Can the turbine be used in conjunction with solar panels?

Yes, our turbine can complement solar panels in a hybrid energy system, providing consistent power generation in both windy and sunny conditions, offering a more reliable renewable energy solution.

Q2. Can the turbine be connected to a battery storage system?

Yes, the Horizontal Axis Wind Turbine is compatible with battery storage systems, allowing users to store excess energy generated during windy conditions for use during periods of low wind.
