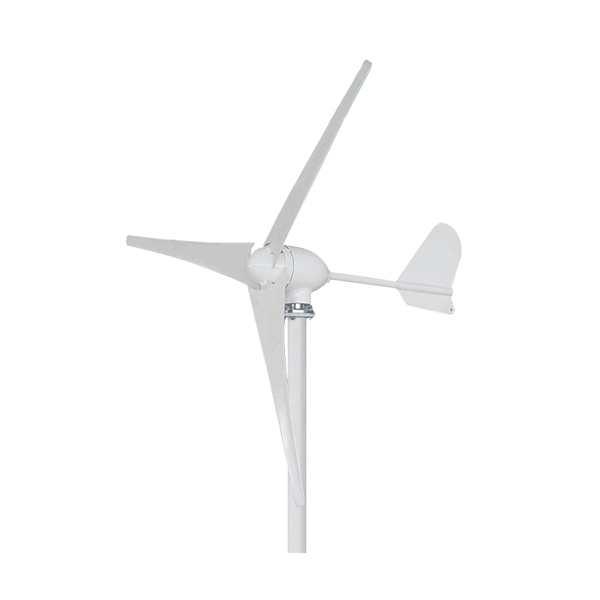

    Picture of Horizontal Axis Wind Turbine, 300W/400W/500W

    Horizontal Axis Wind Turbine, 300W/400W/500W

    1 review(s) | Add your review
    SKU: PH-HWT-M
    $564.47
    ● High-performance horizontal axis wind turbine for home, offering a wide range of power options of 300W, 400W and 500W to provide reliable power. ● The HAWT is capable of rapidly converting wind energy into electricity for multi-scenario applications with 12V/24V rated voltage options. ● NdFeB magnetic steel material ensures stable operation under various wind conditions, providing reliable power output. ● Portable wind turbine design is simple and easy to install and maintain, providing a convenient use experience. Use for off grid living.
    *
    *
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    Horizontal Axis Wind Turbine, 100W/200W/300W

    ● Small wind turbine optional 100W, 200W, 300W, 12V, 24V, off grid living preference. ● Strong wind resistance, low operating vibration, low start-up wind speed, high utilisation of wind energy. ● Mini wind turbine diameter 1.1m, nylon fibre blade material, rare earth permanent magnet generator. ● Ideal for home, marine, camping, offshore, onshore power supply.
    $359.37
    Picture of Horizontal Axis Wind Turbine, 600W/700W

    Horizontal Axis Wind Turbine, 600W/700W

    ● Strong wind resistance, low operating vibration, low start-up wind speed, high utilisation of wind energy ● Horizontal axis wind mill optional 600W, 700W, 12V, 24V, 48V ● Nylon fibre blade material, rare earth permanent magnet generator ● Ideal for home, marine, camping, offshore, onshore power supply
    $708.88
    Picture of Horizontal Wind Turbine, 800W/1000W

    Horizontal Wind Turbine, 800W/1000W

    ● 800W/1000W horizontal axis wind turbine for sale provides reliable and stable power supply. ● Provide two rated voltages of 24V and 48V, adapting to the needs of different scenarios. Flange mounting method is easy and fast, suitable for all kinds of environments. ● Suitable for outdoor, rural and areas far away from the power grid to meet diversified energy needs. ● Features a weather-resistant casing and high-strength materials to ensure reliable performance in harsh weather conditions.
    $1,186.55

    5kW Horizontal Axis Wind Turbine, 220V/380V

    ● The horizontal axis wind turbine has a rated power of 5kw and a maximum power of 5,700W, which ensures efficient power generation at all wind speeds. ● Rated voltage of 220V or 380V can be selected to meet different power needs. The start-up wind speed is only 3m/s, which enables it to be put into operation quickly even in low wind speed environment. ● Adopting 3 pieces of 5.3m reinforced fiberglass blades, flange mounting method, and rare earth permanent magnet generator to ensure the stability of the system, and the safe wind speed is up to 45m/s. ● Equipped with electromagnetic braking and automatic downwind regulation, the wind turbine still operates efficiently under extreme weather conditions.
    $8,436.65
    Picture of 2kW Horizontal Axis Wind Turbine, 48V/96V

    2kW Horizontal Axis Wind Turbine, 48V/96V

    ● Strong wind resistance, low operating vibration, low start-up wind speed, high utilisation of wind energy ● Wind fans for energy optional 2kW, 48V, 96V ● Easy installation, automatic windward adjustment ● Ideal for home, marine, camping, offshore, onshore power supply
    $2,280.85
    Overview

    The hawt turbine has a variety of rated power options, including 300W, 400W and 500W, to accommodate different energy needs. Its 12V/24V rated voltage, 2.5m/s starting wind speed and safe wind speed up to 55m/s ensure efficient and stable power generation performance. 3 or 5 nylon fiber blades can be selected according to demand, and flange mounting is adopted for easy and convenient installation. Rare-earth permanent magnet generator with NdFeB magnet steel material is equipped with electromagnetic braking system, which has strong wind regulation. Automatic downwind regulation and a wide range of operating temperatures (-40~80℃) make it a reliable green energy choice.

    Horizontal axis wind turbine 300 to 500w feature

    Feature

    • Portable wind turbine, perfectly adapted to home wind turbine system.
    • Horizontal wind turbine can be used in a wide range of applications, such as rooftop, caravan, camping and street lighting.
    • The hawt turbine is characterized by high wind resistance, low vibration and start-up wind speed, and high wind energy utilization.


    Details

    1. Horizontal wind turbine with stainless steel tail
    2. Reinforced nylon fiber for blade material
    3. Wind direction adjustment is automatically adjusted to windward

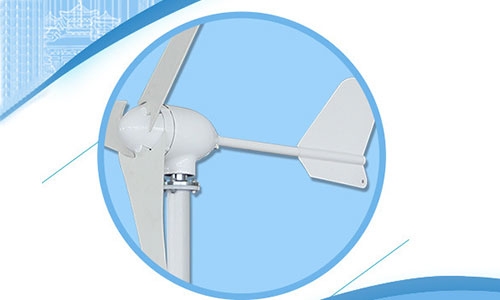

    Horizontal axis wind turbine 300 to 500w detail
    Specs
    Rated Power 300W/400W/500W (optional)
    Maximum Power 300W: 320W; 400W: 430W; 500W: 510W
    Rated Voltage 12V/24V
    Starting Wind Speed 2.5m/s
    Rated Wind Speed 300W: 11m/s; 400W: 11.5m/s; 500W: 12m/s
    Safe Wind Speed ≤55m/s
    Fan Blade Diameter 300W: 1.4m; 400W: 1.6m; 500W: 1.6m
    Number of Blades 3/5 blades (optional)
    Installation Method Flange Installation
    Blade Material Nylon Fiber
    Generator Type Rare Earth Permanent Magnet Generator
    Magnetic Steel Material NdFeB
    Braking Method Electromagnetism
    Wind Adjustment Automatic Windward Adjustment
    Working Temperature -40~80℃
    Application
    Wind turbine for home

    Home

    Wind turbine for street lights

    Street Lights

    Wind turbine for caravan

    Caravan

    Wind turbine for camping

    Camping

    FAQ

    Q1. How does a horizontal axis wind turbine generate electricity?

    A HAWT generates electricity through the conversion of wind energy into rotational motion. The turbine's blades capture the kinetic energy of the wind, causing the rotor to spin. This rotational motion is then transferred to a generator, where it is converted into electrical power.

    Q2. What factors determine the output power of a 300W/400W/500W HAWT?

    The output power of a HAWT depends on several factors, including wind speed, blade design, and generator efficiency. Higher wind speeds generally result in increased power generation. Additionally, the design and length of the turbine blades play a crucial role in capturing more wind energy. The efficiency of the generator in converting rotational energy into electricity also influences the overall output power.

    Q3. Is a horizontal axis wind turbine suitable for residential use?

    Yes, HAWTs in the 300w to 500w range are well-suited for residential use. They are designed to provide a sustainable and reliable source of electricity for small-scale applications. However, it's essential to consider local wind conditions and regulations before installing a horizontal axis wind turbine. Proper maintenance is also crucial to ensure optimal performance and longevity of the turbine.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Kyle | 6/5/2024 9:03 AM
    Better than expected
    I've used this wind turbine for a while and it's great. It's the same style as my previous purchase but lighter and smaller. Makes no noise.
