Horizontal Wind Turbine, 800W/1000W

SKU: PH-HWT-M5
$1,186.55
● 800W/1000W horizontal axis wind turbine for sale provides reliable and stable power supply. ● Provide two rated voltages of 24V and 48V, adapting to the needs of different scenarios. Flange mounting method is easy and fast, suitable for all kinds of environments. ● Suitable for outdoor, rural and areas far away from the power grid to meet diversified energy needs. ● Features a weather-resistant casing and high-strength materials to ensure reliable performance in harsh weather conditions.
*
*
🚚 Free shipping
⏱️ Delivery: 6-12 days
🔙 30-day Returns
Overview

The high-quality horizontal axis wind turbine has optional power ratings of 800W or 1000W.Designed with 24V or 48V rated voltage, the starting wind speed is only 2m/s, and the safe wind speed limit is ≤45m/s.Featuring 3 nylon fiber blades with flange mounting method, it is suitable for rare-earth PM generators with NdFeB magnet steel material. The generator is equipped with electromagnetic braking system, automatic downwind regulation of wind power, and can operate efficiently within the operating temperature range of -40℃ to 80℃.

Horizontal wind turbine 800 to 1000w feature

Feature

  • Off grid wind turbine, perfectly adapted to off grid wind power system.
  • HAWT wind turbine can be used in a wide range of applications, such as rooftop, caravan, camping and street lighting.
  • The hawt turbine is characterized by high wind resistance, low vibration and start-up wind speed, and high wind energy utilization.


Details

  1. The surface of wheel hub is oxidized by plastic spraying, which enhances the corrosion resistance.
  2. Convenient flange design for easy installation and maintenance.
  3. The double groove ball bearings are thicker, which are not easy to shake when the machine is running.
  4. Adopting high-temperature resistant Teflon wire, it is not easy to burn the wire when the generator is overloaded and heated.
Horizontal wind turbine 800 to 1000w detail

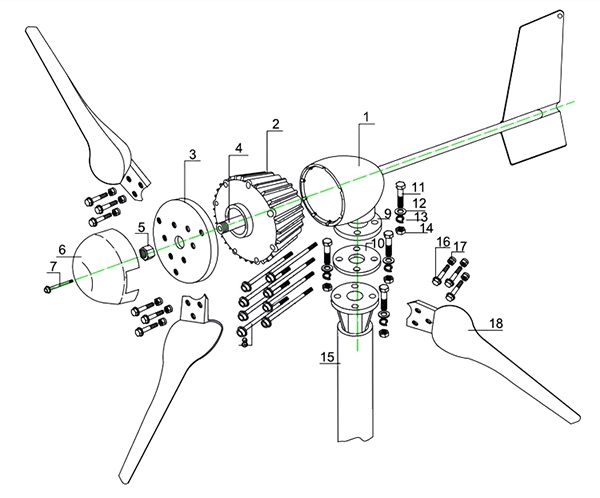

Horizontal Wind Turbine, 800W/1000W Decomposition Diagram

HAWT 800 to 1000w decomposition chart

1 2 3 4 5 6
Rear turbine body Front turbine body Turbine felt Turbine shaft Anti-loosening nut Rectifier
7 8 9 10 11 12
Cowl locking bolts Body locking bolts Wind turbine flange Rubber gasket Bolt Flat washers
13 14 15 16 17 18
Elastomer washer Nuts Steel pipe supports (towers) Anti-loosening nuts Stainless steel screws Wind turbine blade
Specs
Rated Power and Maximum Power 800W (850W) / 1000W (1100W)
Rated Voltage 24V/48V
Starting Wind Speed 2m/s
Rated Wind Speed 11.5m/s (800W), 12.5m/s (1000W)
Safe Wind Speed ≤45m/s
Fan Blade Diameter 2.2m (800W), 2.4m (1000W)
Number of Blades 3
Installation Method Flange installation
Blade Material Nylon Fiber
Generator Type Rare Earth Permanent Magnet Generator
Magnetic Steel Material NdFeB
Braking Method Electromagnetism
Wind Adjustment Automatic Windward Adjustment
Working Temperature -40~80℃
Application
Wind turbine for home

Home

Wind turbine for street lights

Street Lights

Wind turbine for caravan

Caravan

Wind turbine for camping

Camping

FAQ

Q1. How does a horizontal wind turbine generate electricity?

Horizontal wind turbines harness the kinetic energy of the wind to generate electricity. The turbine blades, positioned horizontally, capture the wind's force, causing them to spin. This rotational motion is then transferred to a generator, converting mechanical energy into electrical power. The generated electricity can be used to power homes, businesses, or be stored for later use.

Q2. What factors affect the efficiency of an 800w/1000w horizontal wind turbine?

The efficiency of a HAWT is influenced by various factors, including wind speed, blade design, and site location. Higher wind speeds generally result in increased power generation. Optimal blade design is crucial for capturing maximum energy from the wind. Additionally, choosing an appropriate location with consistent and strong wind patterns enhances overall efficiency.

Q3. Can a horizontal wind turbine be used in urban environments?

Yes, hawt turbines are suitable for urban environments, but proper considerations must be taken. These turbines are often designed to be quieter and visually unobtrusive. Additionally, lower wind speeds in urban areas may impact their efficiency. Careful planning and installation, considering local regulations and wind patterns, are essential to maximize the performance of an 800w/1000w horizontal axis wind turbine in an urban setting.
